A suspended ceiling seismic bracing assembly connects a vertical compression post to intersecting main and cross tees. The lower end of the tubular compression post is slotted to fit directly over the main tee. Four 12-gauge splay wires brace the assembly in the plane of each runner, secured to the runners within two inches of the intersection. Member dimensions and slenderness ratios follow a compression post schedule with maximum lengths ranging from five feet six inches to seven feet using electrical metallic tubing.

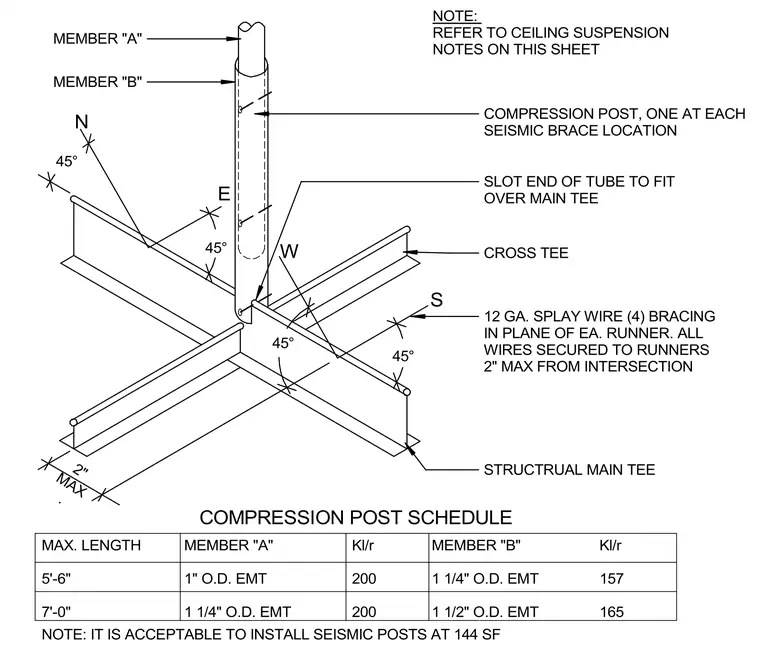

NOTE: REFER TO CEILING SUSPENSION NOTES ON THIS SHEET COMPRESSION POST, ONE AT EACH SEISMIC BRACE LOCATION SLOT END OF TUBE TO FIT OVER MAIN TEE CROSS TEE 12 GA. SPLAY WIRE (4) BRACING IN PLANE OF EA. RUNNER. ALL WIRES SECURED TO RUNNERS 2" MAX FROM INTERSECTION STRUCTRUAL MAIN TEE MAX. LENGTH 5'-6" 7'-0" MEMBER "A" 1" O.D. EMT 1 1/4" O.D. EMT Kl/r 200 200 MEMBER "B" 1 1/4" O.D. EMT 1 1/2" O.D. EMT Kl/r 157 165 NOTE: IT IS ACCEPTABLE TO INSTALL SEISMIC POSTS AT 144 SF COMPRESSION POST SCHEDULE MEMBER "A" MEMBER "B" 45° 45° 45° 45° 2" MAX . N E S W
