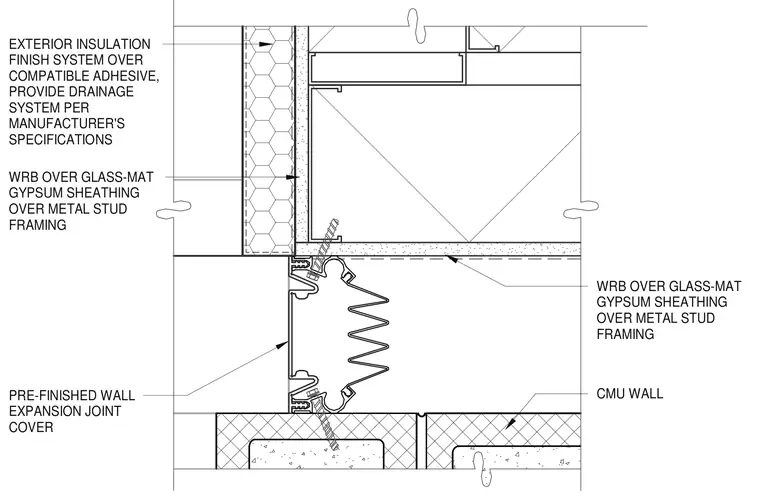

A pre-finished wall expansion joint cover bridges the transition between a metal stud framed exterior wall assembly and a concrete masonry unit wall. The metal stud framing is covered with glass-mat gypsum sheathing and a weather-resistive barrier, with an exterior insulation finish system installed over a compatible adhesive and drainage system on the exterior face. The expansion joint cover is anchored into the framing and masonry substrates to accommodate differential movement at the shaft interface.
WRB OVER GLASS-MAT GYPSUM SHEATHING OVER METAL STUD FRAMING CMU WALL WRB OVER GLASS-MAT GYPSUM SHEATHING OVER METAL STUD FRAMING EXTERIOR INSULATION FINISH SYSTEM OVER COMPATIBLE ADHESIVE, PROVIDE DRAINAGE SYSTEM PER MANUFACTURER'S SPECIFICATIONS PRE-FINISHED WALL EXPANSION JOINT COVER
