A cold-formed steel header connects to an HDS5 stud supporting a lead-lined hollow metal door frame. The assembly utilizes an HDSC bracket attached with four number 10-16 screws into pre-drilled holes at each side. The HDS5 header matches the stud size and frames into the web of the stud below a twenty gauge bottom track. Frame attachment utilizes two quarter-inch diameter Hilti HUS-EZ screw anchors with one and five-eighths inch minimum embedment and two-inch minimum spacing into the stud. T683 clips are used for three and five-eighths inch studs while T685 clips are specified for six-inch studs.

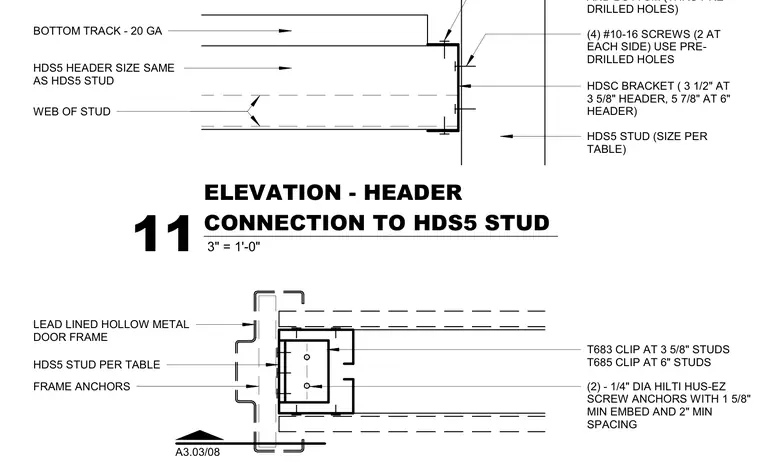

(2) - 1/4" DIA HILTI HUS-EZ SCREW ANCHORS WITH 1 5/8" MIN EMBED AND 2" MIN SPACING HDS5 STUD PER TABLE T683 CLIP AT 3 5/8" STUDS T685 CLIP AT 6" STUDS LEAD LINED HOLLOW METAL DOOR FRAME FRAME ANCHORS A3.03/08 (4) #10-16 SCREWS (2 AT EACH SIDE) USE PRE- DRILLED HOLES HDS5 HEADER SIZE SAME AS HDS5 STUD HDS5 STUD (SIZE PER TABLE) HDSC BRACKET ( 3 1/2" AT 3 5/8" HEADER, 5 7/8" AT 6" HEADER) AND BOTTOM (THRU PRE- DRILLED HOLES) WEB OF STUD BOTTOM TRACK - 20 GA 3" = 1'-0" 11 ELEVATION - HEADER CONNECTION TO HDS5 STUD
