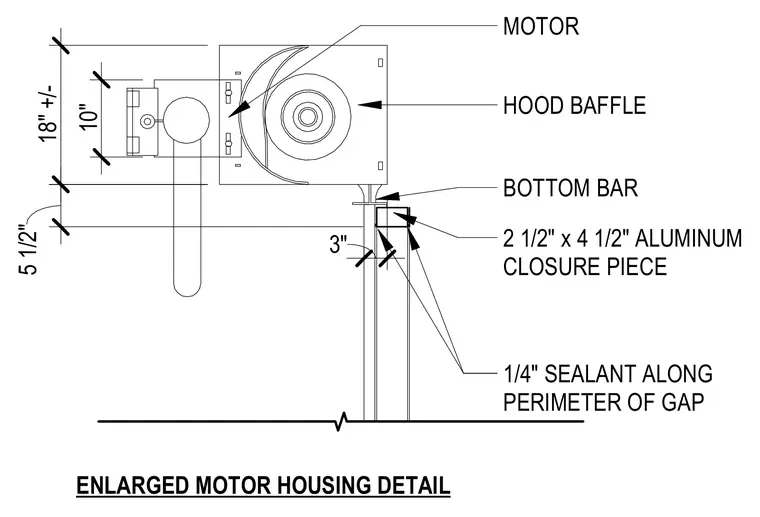

An aluminum motor housing assembly features an enclosing hood baffle and a bottom bar resting on a 2 1/2-inch by 4 1/2-inch aluminum closure piece. A quarter-inch bead of sealant is applied along the perimeter of the assembly gap. Overall vertical dimensions of eighteen inches plus or minus ten inches and five and one-half inches locate the components relative to the surrounding construction.
3" 5 1/2" 18" +/- 10" MOTOR HOOD BAFFLE BOTTOM BAR 2 1/2" x 4 1/2" ALUMINUM CLOSURE PIECE 1/4" SEALANT ALONG PERIMETER OF GAP ENLARGED MOTOR HOUSING DETAIL
