An aluminum reflectorized accessible parking sign and a van accessible supplemental sign are mounted to a two-inch diameter Schedule 40 galvanized steel post using five-sixteenth by three-inch bolts with washers front and back. The steel post extends two feet into a four-inch diameter concrete-filled steel pipe bollard finished with a welded watertight cap. The four-inch bollard is set into a four-sack Portland cement concrete footing measuring eight inches in diameter by two feet deep with a three-inch minimum clearance at the base. The surrounding finished grade is sloped to drain away from the concrete footing. The sign colors consist of a blue background matching Federal Standard 595A color number 15090 and highway white for symbols and letters.

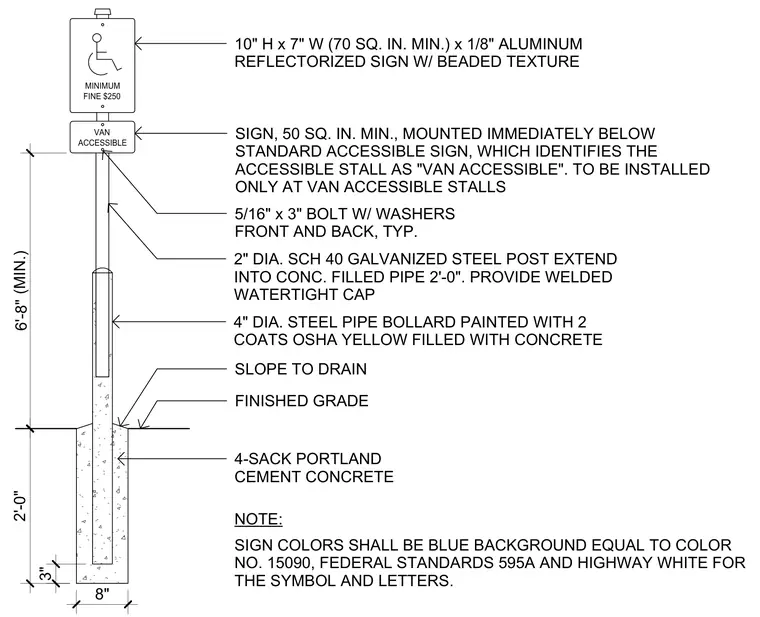

10" H x 7" W (70 SQ. IN. MIN.) x 1/8" ALUMINUM REFLECTORIZED SIGN W/ BEADED TEXTURE 5/16" x 3" BOLT W/ WASHERS FRONT AND BACK, TYP. 4-SACK PORTLAND CEMENT CONCRETE NOTE: SIGN COLORS SHALL BE BLUE BACKGROUND EQUAL TO COLOR NO. 15090, FEDERAL STANDARDS 595A AND HIGHWAY WHITE FOR THE SYMBOL AND LETTERS. 2'-0" 3" MINIMUM FINE $250 VAN ACCESSIBLE 8" SIGN, 50 SQ. IN. MIN., MOUNTED IMMEDIATELY BELOW STANDARD ACCESSIBLE SIGN, WHICH IDENTIFIES THE ACCESSIBLE STALL AS "VAN ACCESSIBLE". TO BE INSTALLED ONLY AT VAN ACCESSIBLE STALLS 2" DIA. SCH 40 GALVANIZED STEEL POST EXTEND INTO CONC. FILLED PIPE 2'-0". PROVIDE WELDED WATERTIGHT CAP 4" DIA. STEEL PIPE BOLLARD PAINTED WITH 2 COATS OSHA YELLOW FILLED WITH CONCRETE SLOPE TO DRAIN FINISHED GRADE (MIN.) 6'-8"
