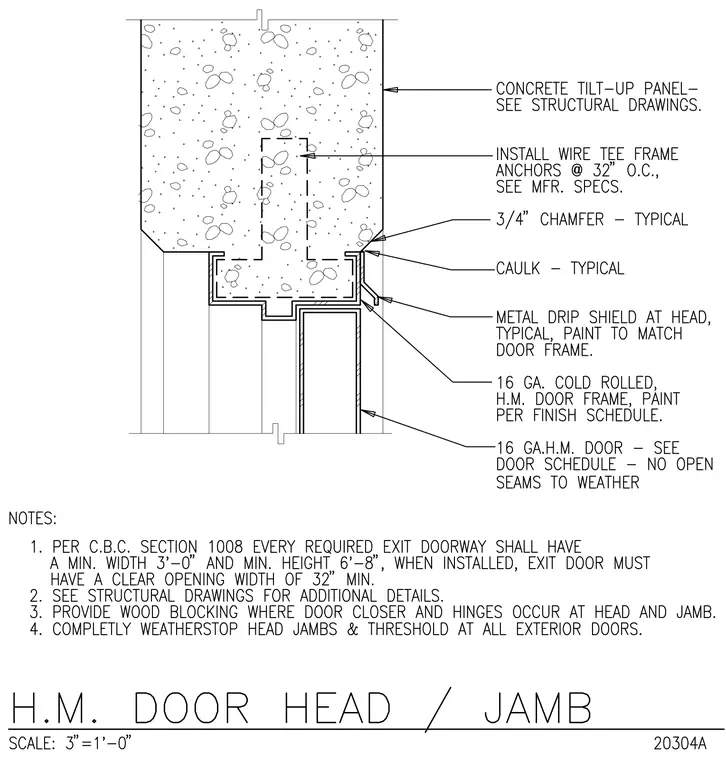

A sixteen gauge hollow metal door frame with a typical three-quarter inch chamfer and perimeter caulking is set into a concrete tilt-up panel opening. A metal drip shield is installed at the head, painted to match the door frame. A sixteen gauge hollow metal door is hung within the frame with no open seams to the weather. Wire tee frame anchors are installed at thirty-two inches on center into the tilt-up panel per manufacturer specifications. Wood blocking is provided at the head and jamb where door closers and hinges occur.
