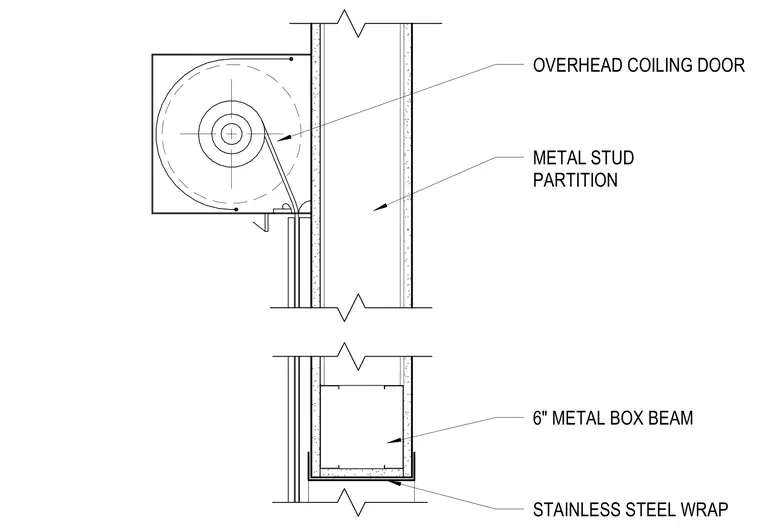

An overhead coiling door assembly is mounted at the head of a metal stud partition, supported by structural framing above the opening. A six-inch metal box beam supports the head condition and is finished with a stainless steel wrap.
OVERHEAD COILING DOOR METAL STUD PARTITION 6" METAL BOX BEAM STAINLESS STEEL WRAP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
