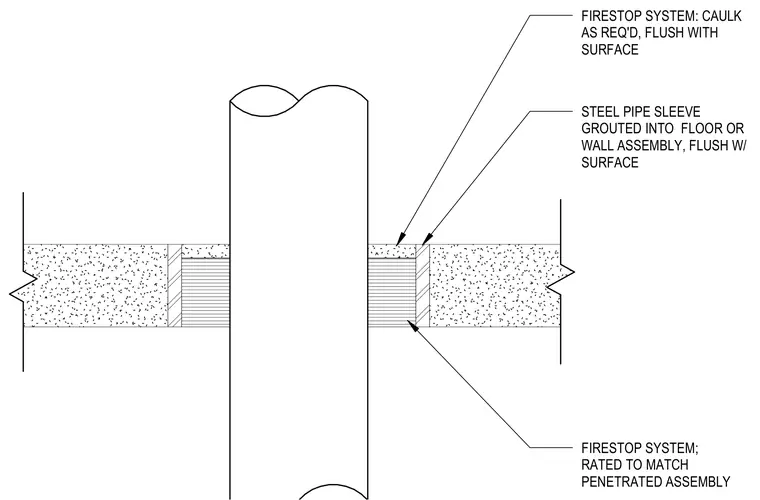

A steel pipe sleeve is grouted into the floor or wall assembly, installed flush with the concrete surface. A rated firestop system matches the penetrated assembly and fills the annular space. Caulk is applied as required, finishing flush with the surface.
STEEL PIPE SLEEVE GROUTED INTO FLOOR OR WALL ASSEMBLY, FLUSH W/ SURFACE FIRESTOP SYSTEM; RATED TO MATCH PENETRATED ASSEMBLY FIRESTOP SYSTEM: CAULK AS REQ'D, FLUSH WITH SURFACE
