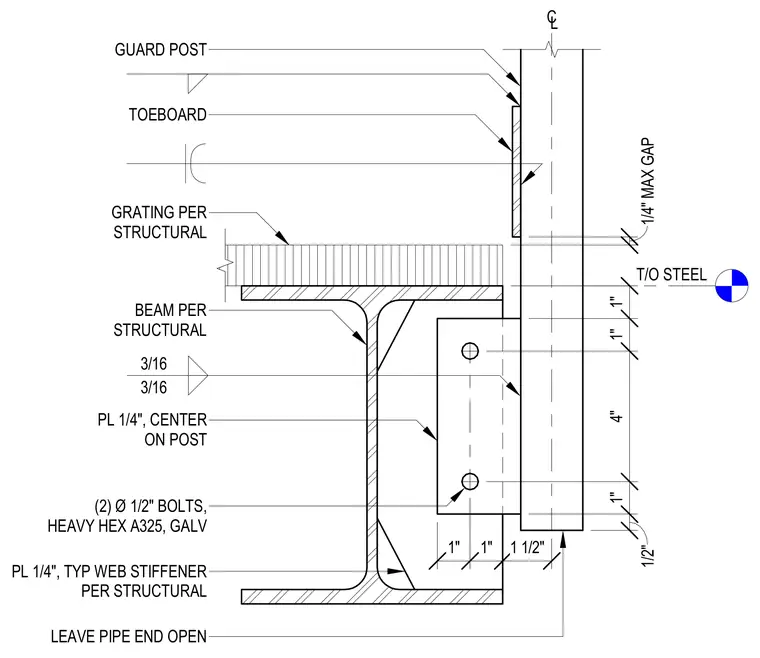

A structural steel guard post connects to the side of a wide flange beam using a quarter-inch plate centered on the post and two half-inch diameter heavy hex A325 galvanized bolts. The beam web features typical quarter-inch plate web stiffeners welded with three-sixteenth-inch fillet welds. A metal grating bears on the top flange of the beam, maintaining a quarter-inch maximum gap against the guard post. A flat toeboard mounts directly to the face of the guard post above the grating level, leaving the bottom of the pipe end open.
T/O STEEL GUARD POST C L 1" 1" 4" 1" 1/2" 1" 1" 1 1/2" (2) Ø 1/2" BOLTS, HEAVY HEX A325, GALV PL 1/4", CENTER ON POST PL 1/4", TYP WEB STIFFENER PER STRUCTURAL GRATING PER STRUCTURAL 3/16 3/16 BEAM PER STRUCTURAL LEAVE PIPE END OPEN TOEBOARD 1/4" MAX GAP
