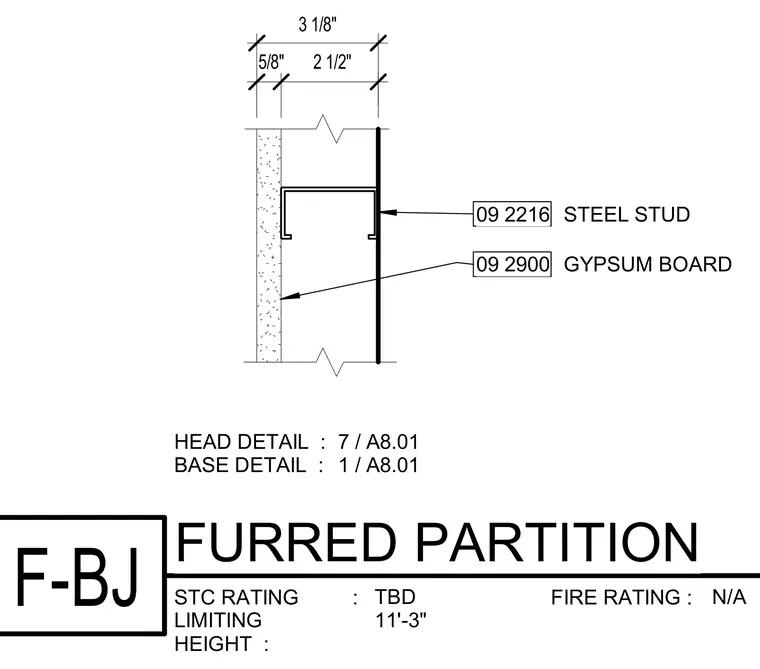

The furred partition assembly consists of a 2 1/2 inch steel stud framed with a single layer of 5/8 inch gypsum board on one side, achieving a total assembly thickness of 3 1/8 inches. The limiting height is specified as 11'-3", while STC and fire ratings are listed as TBD and N/A respectively. Head and base conditions reference details 7 and 1 on sheet A8.01.
5/8" 2 1/2" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-BJ FURRED PARTITION TBD N/A 11'-3" 7 / A8.01 1 / A8.01 09 2900 GYPSUM BOARD 09 2216 STEEL STUD 3 1/8"
