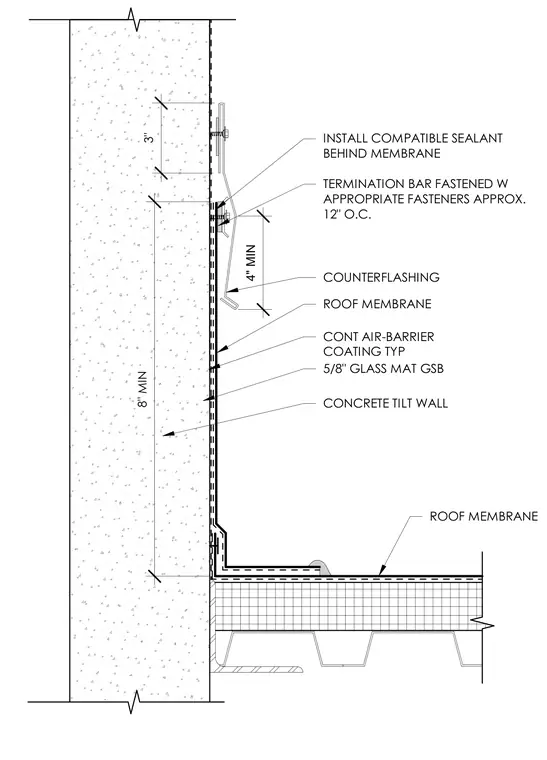

Compatible sealant is installed behind the roof membrane at the wall interface. A termination bar is fastened over the membrane with appropriate fasteners spaced approximately 12 inches on center. A counterflashing overlaps the membrane termination extending down a minimum of 4 inches. The concrete tilt wall receives a continuous air-barrier coating and 5/8-inch glass mat gypsum sheathing, with the roof membrane turning up the wall a minimum of 8 inches.
3" INSTALL COMPATIBLE SEALANT BEHIND MEMBRANE TERMINATION BAR FASTENED W APPROPRIATE FASTENERS APPROX. 12" O.C. COUNTERFLASHING ROOF MEMBRANE 8" MIN ROOF MEMBRANE CONCRETE TILT WALL CONT AIR-BARRIER COATING TYP 5/8" GLASS MAT GSB 4" MIN
