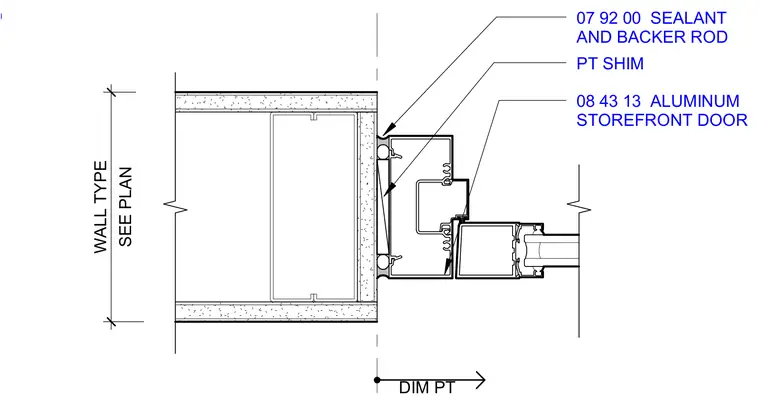

An aluminum-framed storefront door frame attaches to a wall assembly sized per plan using preservative-treated shims for plumb alignment. The perimeter joint between the frame and the wall is sealed with elastomeric joint sealant backed by a compressible backer rod. Dimension points establish the centerline and face locations for positioning the frame relative to the wall.
08 43 13 ALUMINUM-FRAMED SEE PLAN WALL TYPE PT SHIM DIM PT 08 43 13 ALUMINUM STOREFRONT DOOR 07 92 00 SEALANT AND BACKER ROD
