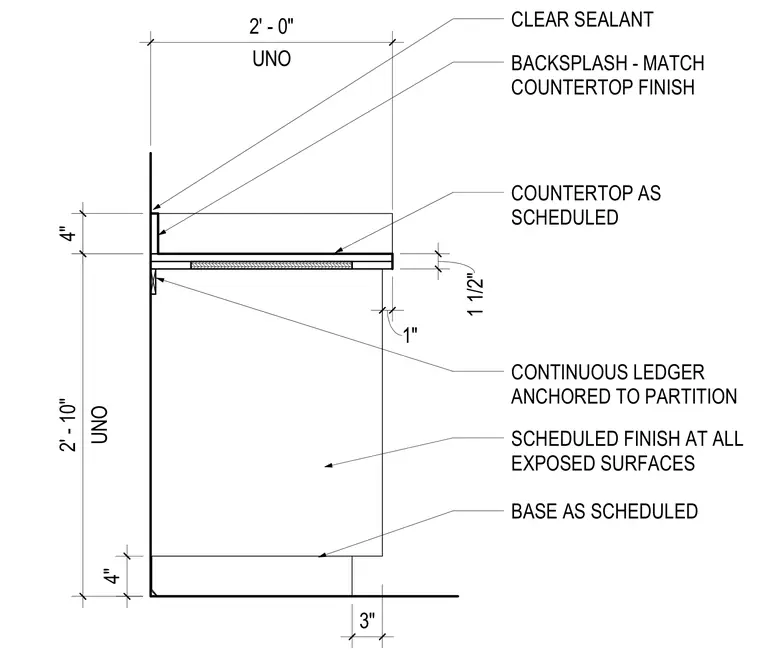

An open-base millwork cabinet is secured to a partition wall with a continuous ledger anchored directly into the framing. The assembly features a scheduled finish applied to all exposed surfaces and a base detail with a three-inch offset. A scheduled countertop sits above the cabinet body with a matched backsplash sealed with clear sealant.
4" 4" UNO 2' - 0" UNO 2' - 10" 1 1/2" 3" COUNTERTOP AS SCHEDULED 1" CLEAR SEALANT BACKSPLASH - MATCH COUNTERTOP FINISH SCHEDULED FINISH AT ALL EXPOSED SURFACES BASE AS SCHEDULED CONTINUOUS LEDGER ANCHORED TO PARTITION
