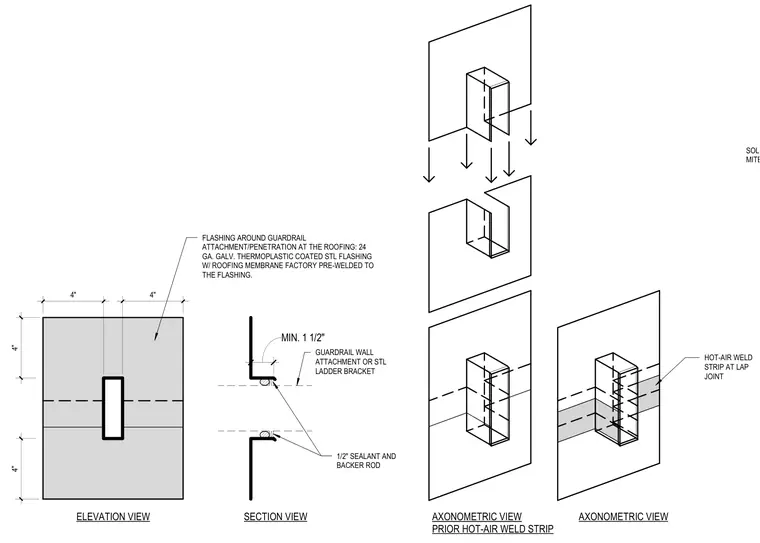

Roof penetrations for guardrail attachments and steel ladder brackets are waterproofed using a twenty-four gauge galvanized thermoplastic coated steel flashing with roofing membrane factory pre-welded to the flashing. All seams and miter joints are soldered. A one-half-inch sealant bead and backer rod seal the connection. A hot-air weld strip is applied at the lap joint.
SOLDER ALL SEAMS AND MITER JOINTS, TYP. ELEVATION VIEW MIN. 1 1/2" GUARDRAIL WALL ATTACHMENT OR STL LADDER BRACKET SECTION VIEW FLASHING AROUND GUARDRAIL ATTACHMENT/PENETRATION AT THE ROOFING: 24 GA. GALV. THERMOPLASTIC COATED STL FLASHING W/ ROOFING MEMBRANE FACTORY PRE-WELDED TO THE FLASHING. 1/2" SEALANT AND BACKER ROD AXONOMETRIC VIEW PRIOR HOT-AIR WELD STRIP AXONOMETRIC VIEW HOT-AIR WELD STRIP AT LAP JOINT 4" 4" 4" 4"
