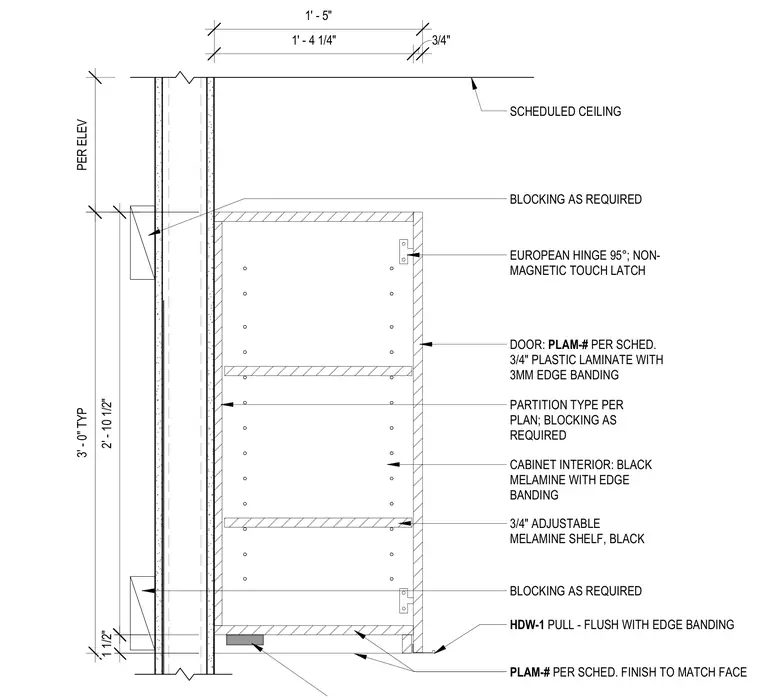

An upper cabinet mounts to a partition wall of specified type backed by required wood blocking at the top and bottom. The cabinet features a black melamine interior with three-quarter-inch adjustable black melamine shelves. Doors are constructed from three-quarter-inch plastic laminate with three-millimeter edge banding, finished to match the face, and hang on ninety-five-degree European hinges paired with a non-magnetic touch latch and a flush hardware pull. The cabinet box requires one foot four and one-quarter inches of depth with an overall height of two feet ten and one-half inches, positioned below the scheduled ceiling.
PARTITION TYPE PER PLAN; BLOCKING AS REQUIRED DOOR: PLAM-# PER SCHED. 3/4" PLASTIC LAMINATE WITH 3MM EDGE BANDING 3/4" ADJUSTABLE MELAMINE SHELF, BLACK CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING 1' - 4 1/4" 3/4" 2' - 10 1/2" 1' - 5" 3' - 0" TYP PLAM-# PER SCHED. FINISH TO MATCH FACE HDW-1 PULL - FLUSH WITH EDGE BANDING EUROPEAN HINGE 95°; NON- MAGNETIC TOUCH LATCH 1 1/2" SCHEDULED CEILING BLOCKING AS REQUIRED PER ELEV BLOCKING AS REQUIRED
