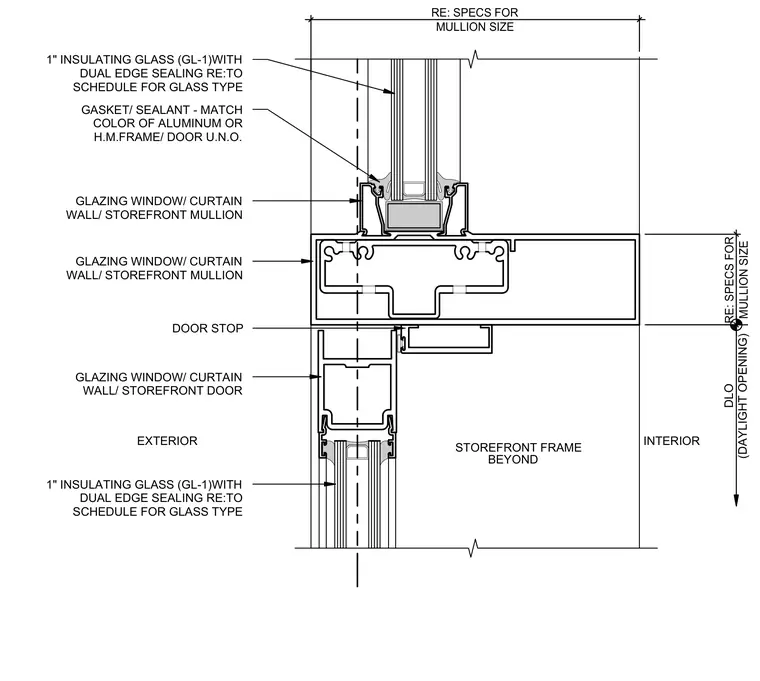

An aluminum storefront door head and transom assembly details the connection between a transom glass unit and an aluminum door frame with an integrated door stop. One-inch insulating glass units with dual edge sealing are secured with gaskets and sealant matched to the aluminum or hollow metal frame. Glazing pockets receive mullions sized per specifications for both storefront framing and door framing elements.
EXTERIOR INTERIOR DLO (DAYLIGHT OPENING) GASKET/ SEALANT - MATCH COLOR OF ALUMINUM OR H.M.FRAME/ DOOR U.N.O. 1" INSULATING GLASS (GL-1)WITH DUAL EDGE SEALING RE:TO SCHEDULE FOR GLASS TYPE GLAZING WINDOW/ CURTAIN WALL/ STOREFRONT MULLION GLAZING WINDOW/ CURTAIN WALL/ STOREFRONT MULLION GLAZING WINDOW/ CURTAIN WALL/ STOREFRONT DOOR 1" INSULATING GLASS (GL-1)WITH DUAL EDGE SEALING RE:TO SCHEDULE FOR GLASS TYPE STOREFRONT FRAME BEYOND DOOR STOP RE: SPECS FOR MULLION SIZE RE: SPECS FOR MULLION SIZE
