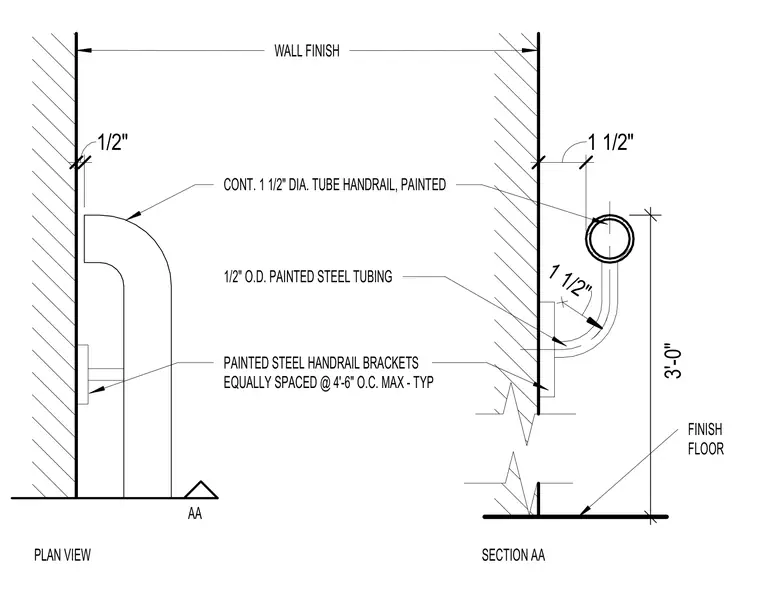

A continuous one-and-a-half-inch diameter painted steel tube handrail is secured to a finished wall using painted steel handrail brackets. The brackets feature half-inch outside diameter painted steel tubing spaced at a maximum of four feet six inches on center. The handrail is positioned three feet above the finish floor and offsets one-and-a-half inches from the wall surface.
PAINTED STEEL HANDRAIL BRACKETS EQUALLY SPACED @ 4'-6" O.C. MAX - TYP 1/2" O.D. PAINTED STEEL TUBING CONT. 1 1/2" DIA. TUBE HANDRAIL, PAINTED WALL FINISH PLAN VIEW SECTION AA AA 1 1/2" 1 1/2" 1/2" 3'-0" FINISH FLOOR
