Framing consists of one-inch by four-inch fourteen gauge stainless steel or galvanized steel channels with closed ends. At stainless steel tops, weld studs to the underside of the top and secure to framing with lock washers and cap nuts. At wood tops, secure channel framing to the top with oval head stainless steel screws. Cross-bracing is spaced at thirty inches maximum center to center. The assembly incorporates NSF approved component hardware Q75-1366 latex sound deadening.

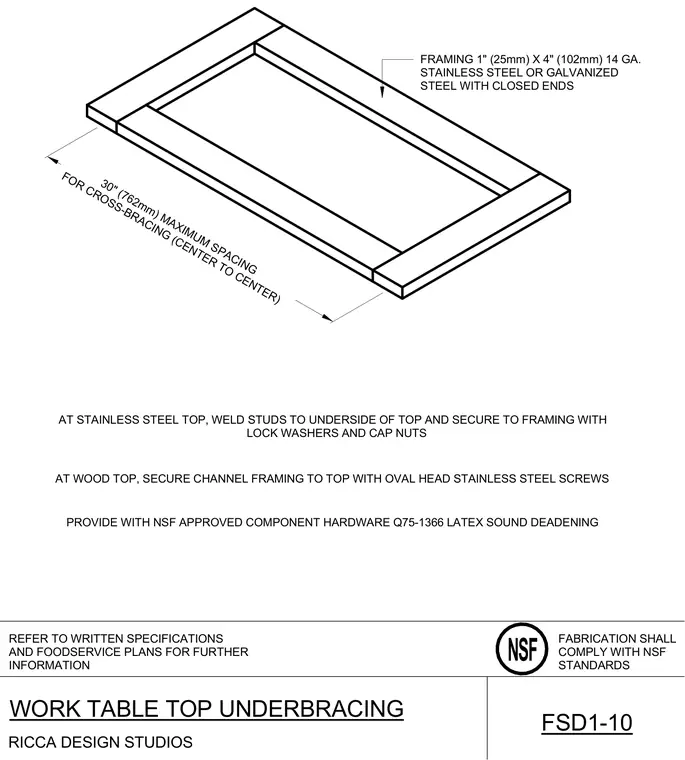

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF FRAMING 1" (25mm) X 4" (102mm) 14 GA. STAINLESS STEEL OR GALVANIZED STEEL WITH CLOSED ENDS AT STAINLESS STEEL TOP, WELD STUDS TO UNDERSIDE OF TOP AND SECURE TO FRAMING WITH LOCK WASHERS AND CAP NUTS AT WOOD TOP, SECURE CHANNEL FRAMING TO TOP WITH OVAL HEAD STAINLESS STEEL SCREWS 30" (762mm) MAXIMUM SPACING FOR CROSS-BRACING (CENTER TO CENTER) PROVIDE WITH NSF APPROVED COMPONENT HARDWARE Q75-1366 LATEX SOUND DEADENING WORK TABLE TOP UNDERBRACING FSD1-10
