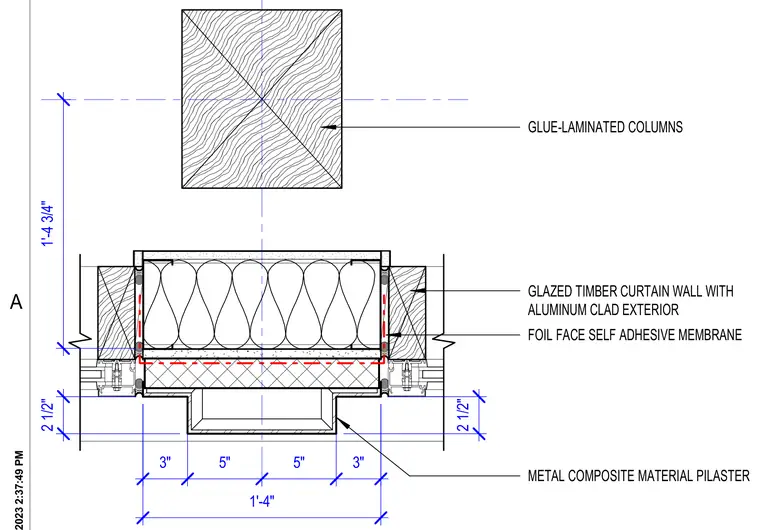

A glazed timber curtain wall with an aluminum-clad exterior interfaces with a metal composite material pilaster. Glue-laminated columns align behind a continuous foil-faced self-adhesive membrane acting as a vapor barrier and air seal. The framing incorporates insulated glazing pockets flanked by timber mullions and detailed dimensional clearances.
1'-4 3/4" 3" 5" 5" 3" 1'-4" 2 1/2" 2 1/2" GLAZED TIMBER CURTAIN WALL WITH ALUMINUM CLAD EXTERIOR METAL COMPOSITE MATERIAL PILASTER GLUE-LAMINATED COLUMNS FOIL FACE SELF ADHESIVE MEMBRANE A
