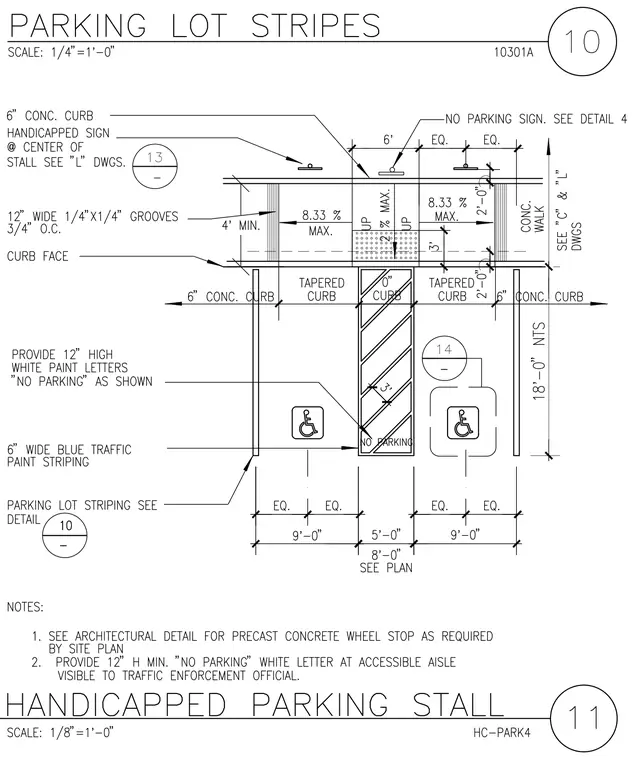

This accessible parking stall layout details the required dimensions, striping, and signage for ADA compliance. The stall configuration includes a nine-foot-wide parking space with a five-foot-wide access aisle featuring eight-and-one-third-percent maximum slope requirements. Pavement markings include six-inch-wide blue traffic paint striping and twelve-inch-high white painted "NO PARKING" letters within the access aisle. Concrete curbs enclose the perimeter with tapered curb transitions at the access ramp, featuring a maximum two-percent cross slope. A designated handicapped parking sign is centered at the stall per site drawings.
