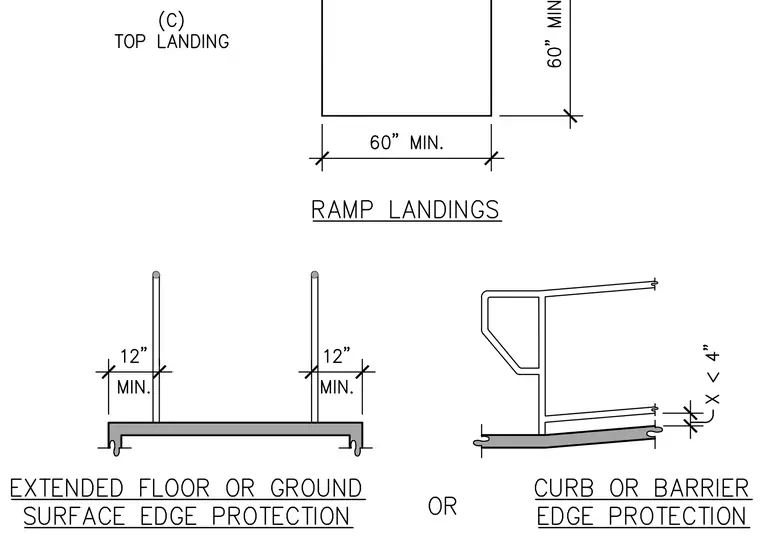

An accessible ramp top landing requires a minimum dimension of sixty inches by sixty inches. Edge protection along the ramp or landing surface is provided by either an extended floor or ground surface projecting at least twelve inches beyond the inside face of the handrail, or by a curb or barrier maintaining a maximum clearance under four inches.
