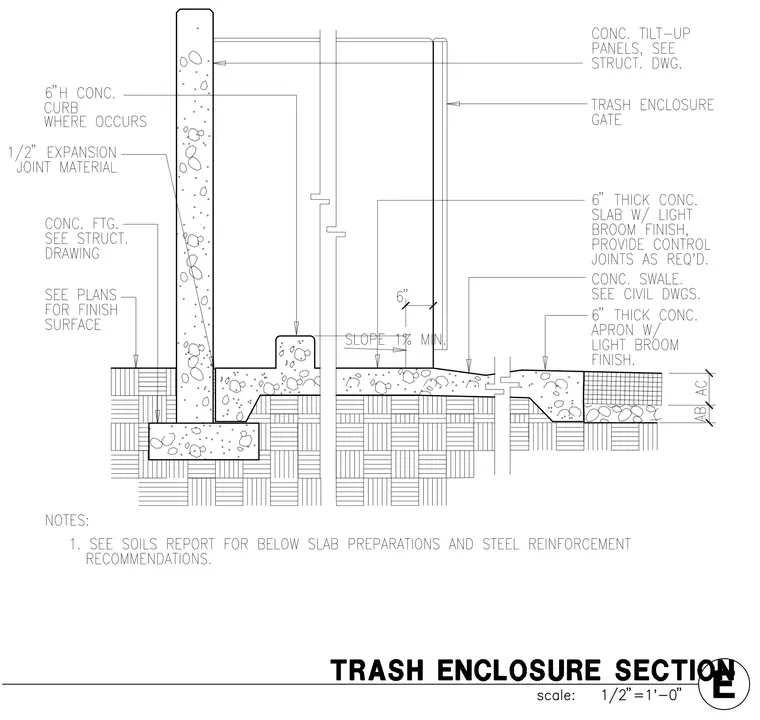

This elevation section details a concrete tilt-up wall assembly for a trash enclosure supported by a concrete footing with half-inch expansion joint material. A six-inch high concrete curb is provided where required, alongside a six-inch thick concrete slab and apron with a light broom finish and control joints. A concrete swale is sloped one percent minimum toward drainage. The enclosure gate aligns with the tilt-up panels as specified on structural drawings.
