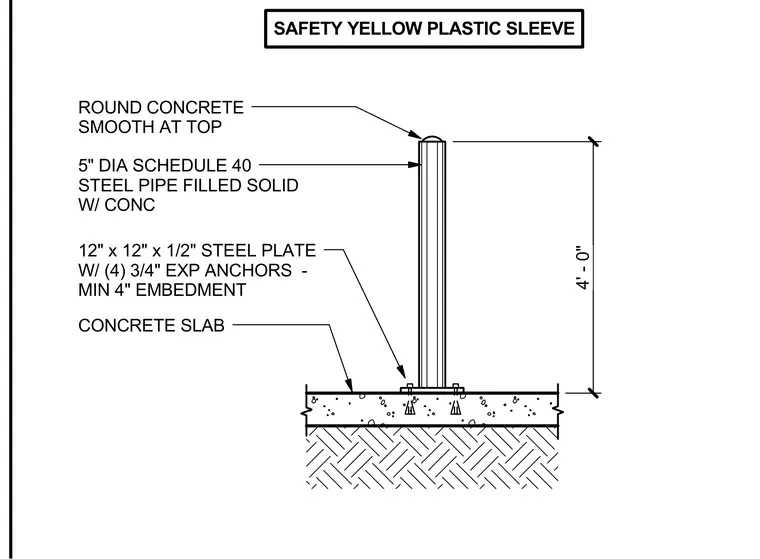

A five-inch diameter schedule forty steel pipe bollard is filled solid with concrete and capped with round smooth concrete at the top. The pipe is covered with a safety yellow plastic sleeve and welded to a twelve by twelve by one-half inch steel base plate. The base plate is secured to a concrete slab using four three-quarter inch expansion anchors with a minimum four-inch embedment.
ROUND CONCRETE SMOOTH AT TOP 5" DIA SCHEDULE 40 STEEL PIPE FILLED SOLID W/ CONC CONCRETE SLAB 4' - 0" SAFETY YELLOW PLASTIC SLEEVE 12" x 12" x 1/2" STEEL PLATE W/ (4) 3/4" EXP ANCHORS - MIN 4" EMBEDMENT
