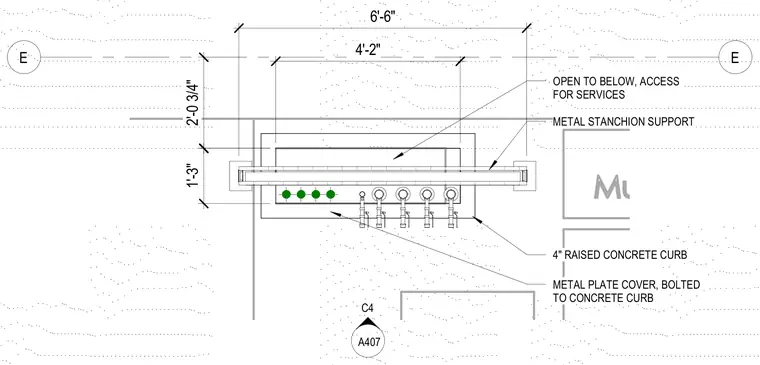

A metal plate cover is bolted directly to a four-inch raised concrete curb, enclosing an opening designated for service access. A metal stanchion support spans the assembly, which sits adjacent to grid line E with overall dimensions of six feet six inches by two feet three-quarters of an inch.
E E 4'-2" 1'-3" A407 C4 6'-6" 2'-0 3/4" 4" RAISED CONCRETE CURB METAL STANCHION SUPPORT OPEN TO BELOW, ACCESS FOR SERVICES METAL PLATE COVER, BOLTED TO CONCRETE CURB
