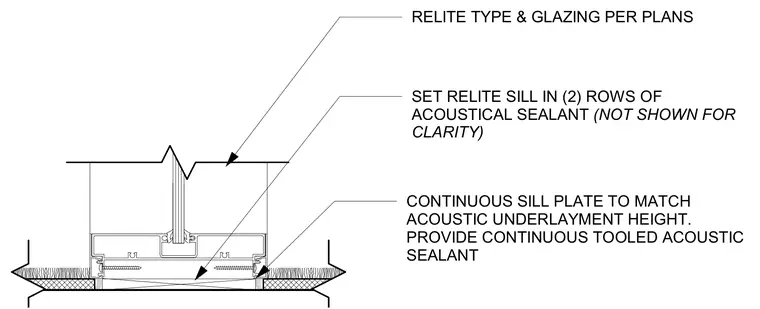

The glazed relite assembly is set in two rows of acoustical sealant atop a continuous sill plate. The sill plate is matched to the acoustic underlayment height and finished with a continuous tooled acoustic sealant at the joints. The relite type and glass specification follow the project floor plans.
RELITE TYPE & GLAZING PER PLANS CONTINUOUS SILL PLATE TO MATCH ACOUSTIC UNDERLAYMENT HEIGHT. PROVIDE CONTINUOUS TOOLED ACOUSTIC SEALANT SET RELITE SILL IN (2) ROWS OF ACOUSTICAL SEALANT (NOT SHOWN FOR CLARITY)
