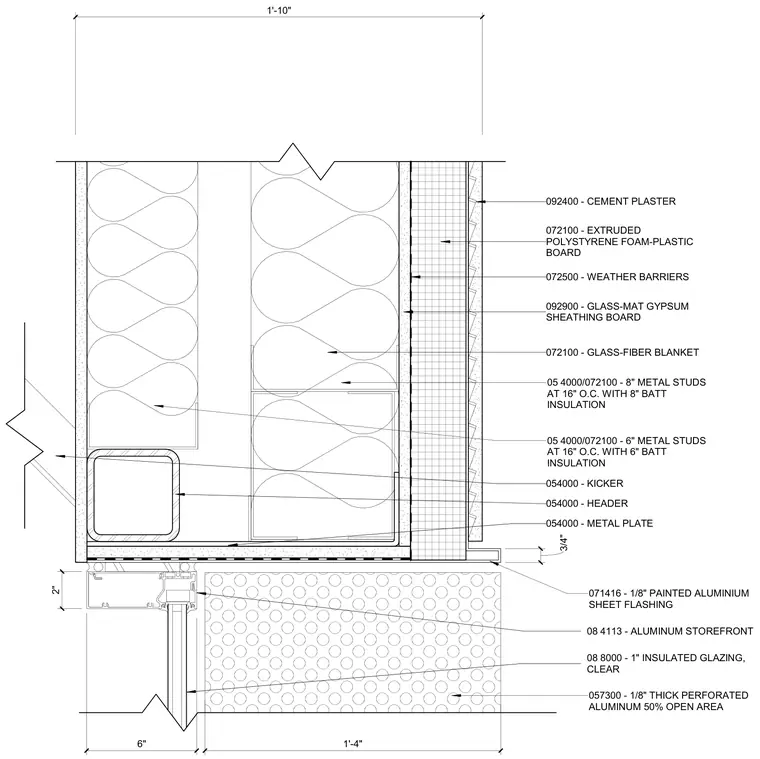

An aluminum storefront framing member with one-inch insulated clear glazing sits beneath a cold-formed metal stud head framed with eight-inch metal studs at sixteen inches on center and six-inch batt insulation. A metal plate and hollow structural section kicker tie the header into the cold-formed framing assembly. The exterior features glass-mat gypsum sheathing board, weather barriers, extruded polystyrene foam-plastic board, cement plaster, and a one-eighth-inch painted aluminum sheet flashing. A one-eighth-inch thick perforated aluminum panel with fifty percent open area finishes the exterior facade above the storefront head.
05 4000/072100 - 8" METAL STUDS AT 16" O.C. WITH 8" BATT INSULATION 6" 08 8000 - 1" INSULATED GLAZING, CLEAR 08 4113 - ALUMINUM STOREFRONT 2" 1'-10" 072100 - EXTRUDED POLYSTYRENE FOAM-PLASTIC BOARD 3/4" 092400 - CEMENT PLASTER 072500 - WEATHER BARRIERS 092900 - GLASS-MAT GYPSUM SHEATHING BOARD 072100 - GLASS-FIBER BLANKET 054000 - HEADER 05 4000/072100 - 6" METAL STUDS AT 16" O.C. WITH 6" BATT INSULATION 054000 - METAL PLATE 071416 - 1/8" PAINTED ALUMINIUM SHEET FLASHING 054000 - KICKER 057300 - 1/8" THICK PERFORATED ALUMINUM 50% OPEN AREA 1'-4"
