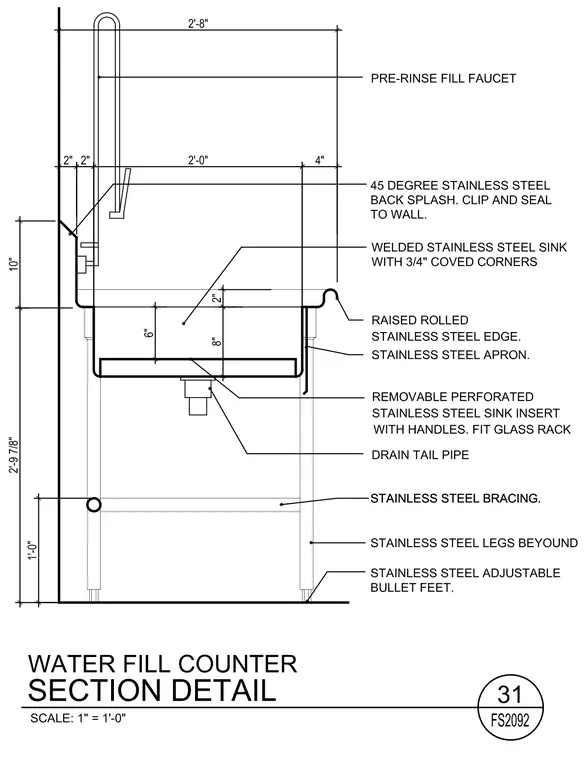

A stainless steel water fill counter features a welded stainless steel sink with 3/4-inch coved corners, a removable perforated stainless steel sink insert with handles, and a drain tail pipe. The assembly includes a 45-degree stainless steel back splash clipped and sealed to the wall, a raised rolled stainless steel edge, a stainless steel apron, stainless steel bracing, stainless steel legs, and stainless steel adjustable bullet feet. A pre-rinse fill faucet is mounted above the counter.
