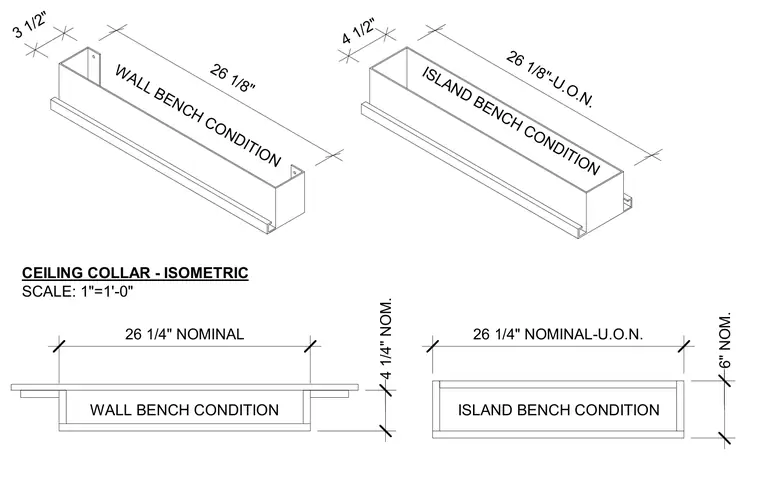

These isometric and planar details illustrate the wall bench condition and island bench condition with corresponding ceiling collars. The wall bench condition is dimensioned with a depth of twenty-six and one-eighth inches, a width of three and one-half inches, and a nominal length of twenty-six and one-quarter inches unless otherwise noted. The island bench condition measures twenty-six and one-eighth inches by four and one-half inches, with a nominal height of six inches and a collar width of four and one-quarter inches unless otherwise noted.
WALL BENCH CONDITION ISLAND BENCH CONDITION SCALE: 1"=1'-0" CEILING COLLAR - ISOMETRIC WALL BENCH CONDITION ISLAND BENCH CONDITION 4 1/2" 3 1/2" 26 1/8" 26 1/8"-U.O.N. 26 1/4" NOMINAL-U.O.N. 26 1/4" NOMINAL 4 1/4" NOM. 6" NOM.
