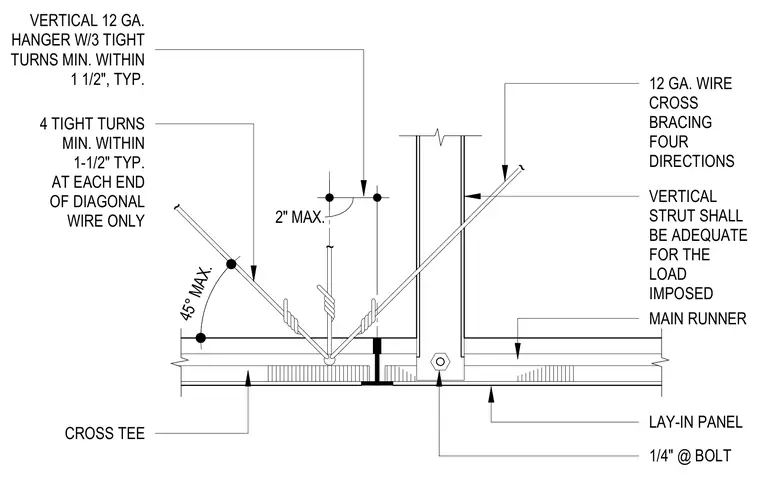

Suspended ceiling lateral bracing assembly featuring twelve gauge wire cross bracing in four directions anchored to main runners and cross tees. A vertical strut adequately sized for the imposed load connects to the ceiling grid using a quarter-inch bolt. Vertical twelve gauge hanger wires require a minimum of three tight turns within one and a half inches. Diagonal wires require four tight turns minimum within one and a half inches at each end with a maximum forty-five degree angle and two-inch maximum offset.
12 GA. WIRE CROSS BRACING FOUR DIRECTIONS VERTICAL STRUT SHALL BE ADEQUATE FOR THE LOAD IMPOSED MAIN RUNNER LAY-IN PANEL 4 TIGHT TURNS MIN. WITHIN 1-1/2" TYP. AT EACH END OF DIAGONAL WIRE ONLY CROSS TEE 1/4" @ BOLT VERTICAL 12 GA. HANGER W/3 TIGHT TURNS MIN. WITHIN 1 1/2", TYP. ~ ~ ~ 2" MAX. 45° MAX.
