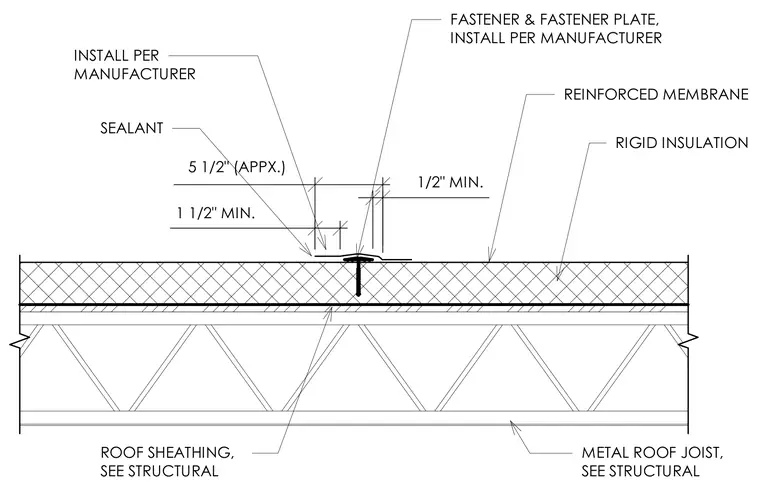

A reinforced membrane sits atop rigid insulation and roof sheathing, which are supported from below by a metal roof joist sized per structural drawings. Fasteners and fastener plates secure the layers through the insulation, installed according to the manufacturer's specifications. A bead of sealant is applied with specified minimum clearances of one and one-half inches and one-half inch, with an approximate five and one-half inch dimension shown.
1 1/2" MIN. 1/2" MIN. 5 1/2" (APPX.) METAL ROOF JOIST, SEE STRUCTURAL INSTALL PER MANUFACTURER SEALANT FASTENER & FASTENER PLATE, INSTALL PER MANUFACTURER REINFORCED MEMBRANE RIGID INSULATION ROOF SHEATHING, SEE STRUCTURAL
