This six and one-half inch gypsum shaftliner partition assembly utilizes C-H steel studs with 5/8-inch gypsum shaftliner panels and gypsum board layers. The wall assembly is designed for a limiting height of 16'-1" and conforms to UL design number U415. Head and base details reference sheets 13/A8.01 and 9/A8.01 respectively.

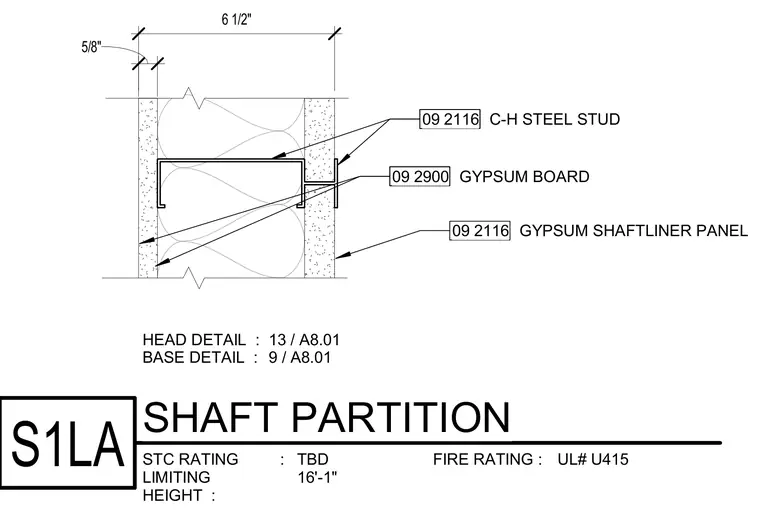

09 2116 GYPSUM SHAFTLINER PANEL 5/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : S1LA SHAFT PARTITION TBD UL# U415 16'-1" 13 / A8.01 9 / A8.01 09 2900 GYPSUM BOARD 09 2116 C-H STEEL STUD 09 2116 C-H STEEL STUD 09 2900 GYPSUM BOARD 6 1/2"
