An aluminum window system rests on exterior framing and exterior sheathing, shimmed as required with insulated glass set into the mullions. A self-adhered flashing pan and waterproofing membrane are installed beneath the sill, sloped a minimum of 1/4 inch per foot toward the exterior. A pre-finished aluminum sill pan matching the EIFS wall covers the rough opening, sealed at the joint with a backer rod and sealant. The exterior insulation and finish system is applied over a compatible adhesive with a water-resistive barrier extending down the face of the exterior sheathing. Any penetrations in the waterproofing membrane and water-resistive barrier are fully sealed.

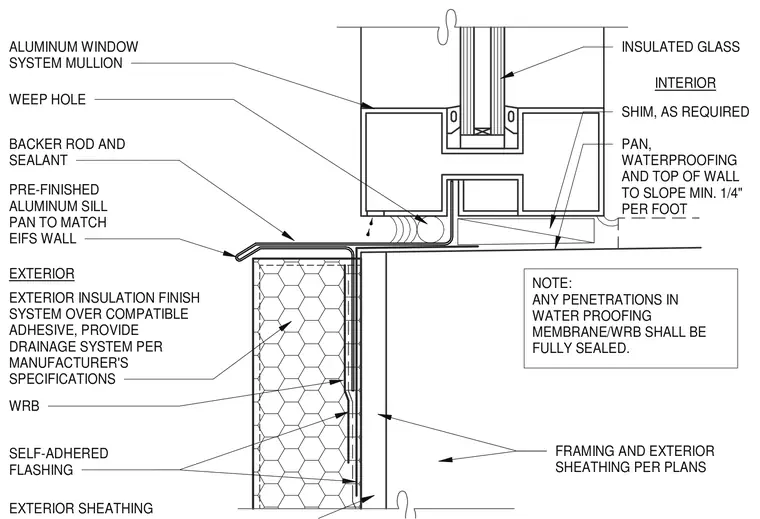

EXTERIOR FRAMING AND EXTERIOR SHEATHING PER PLANS SHIM, AS REQUIRED INSULATED GLASS NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. INTERIOR PRE-FINISHED ALUMINUM SILL PAN TO MATCH EIFS WALL EXTERIOR SHEATHING ALUMINUM WINDOW SYSTEM MULLION WEEP HOLE BACKER ROD AND SEALANT WRB EXTERIOR INSULATION FINISH SYSTEM OVER COMPATIBLE ADHESIVE, PROVIDE DRAINAGE SYSTEM PER MANUFACTURER'S SPECIFICATIONS SELF-ADHERED FLASHING PAN, WATERPROOFING AND TOP OF WALL TO SLOPE MIN. 1/4" PER FOOT
