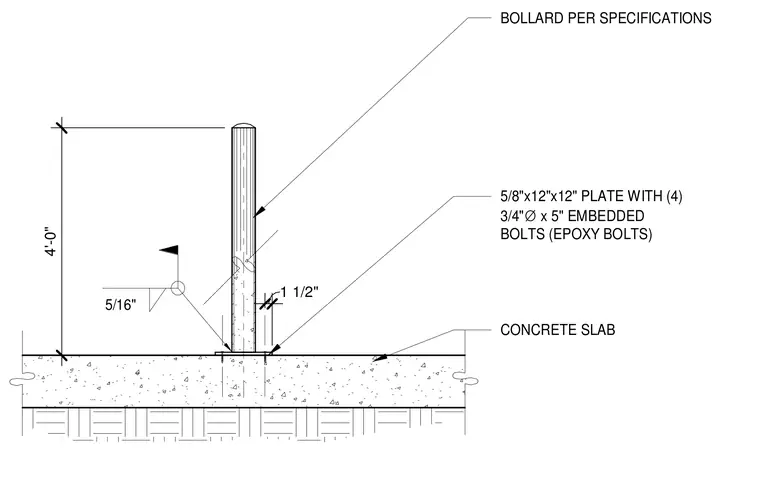

A steel bollard is welded to a 5/8-inch by 12-inch by 12-inch base plate using a 5/16-inch fillet weld. The assembly is anchored to a concrete slab using four 3/4-inch diameter by 5-inch embedded epoxy bolts. The bollard stands 4 feet tall from the top of the concrete slab.
CONCRETE SLAB BOLLARD PER SPECIFICATIONS 5/16" 5/8"x12"x12" PLATE WITH (4) 3/4" ∅ x 5" EMBEDDED BOLTS (EPOXY BOLTS) 1 1/2" 4'-0"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
