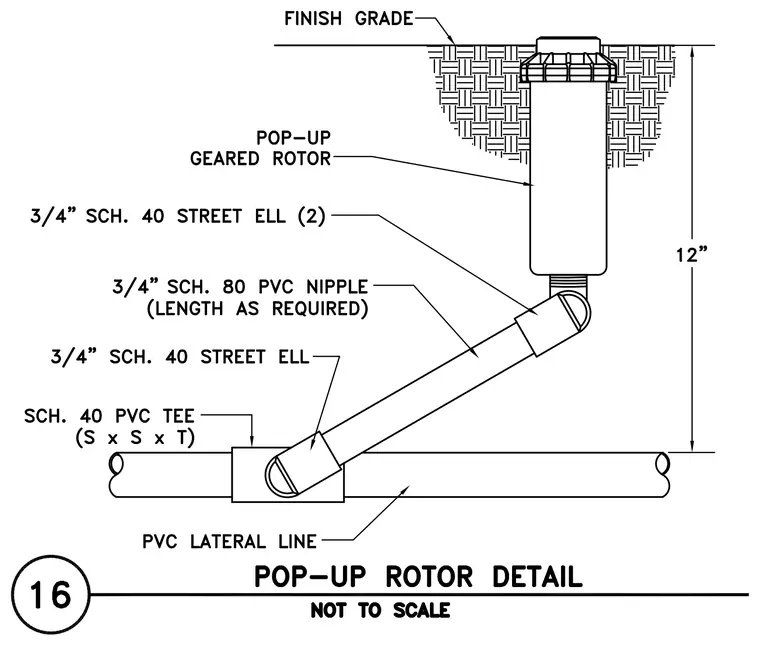

A pop-up geared rotor connects to an underground polyvinyl chloride lateral line set twelve inches below finish grade. The sprinkler body ties into a three-quarter-inch schedule 40 polyvinyl chloride tee on the lateral line through a three-quarter-inch schedule 40 street ell, a three-quarter-inch schedule 80 polyvinyl chloride nipple of required length, and two three-quarter-inch schedule 40 street ells.
