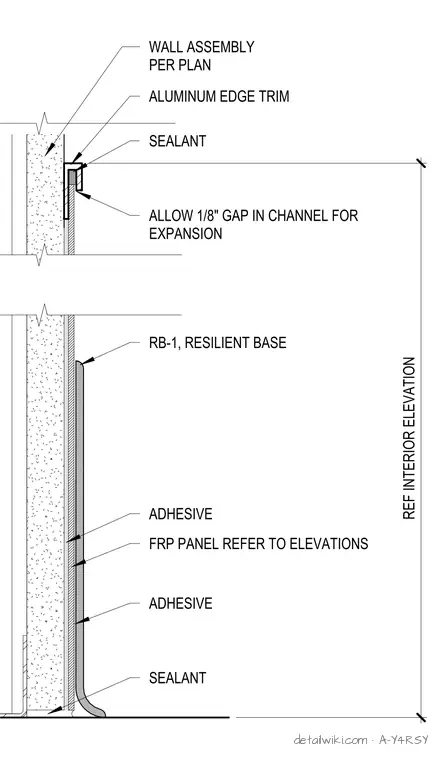

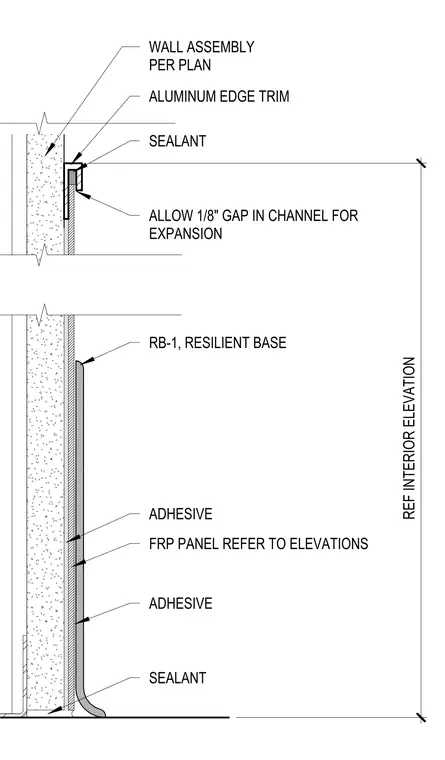

Fiber-reinforced plastic panels adhere to the wall substrate. A resilient base applies at the floor line and seals at the bottom. Aluminum edge trim installs at the top of the panel with a one-eighth inch gap provided within the channel to accommodate thermal expansion. A bead of sealant finishes the top edge of the trim.
