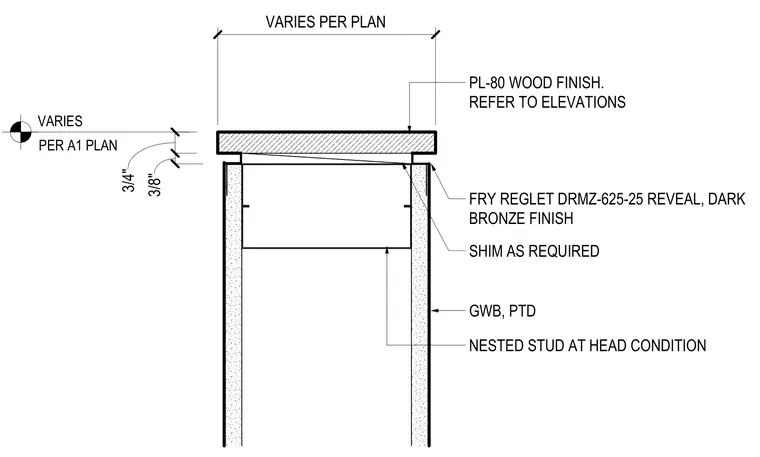

A wood finish trim piece sits atop a nested stud head condition, backed by shims as required to achieve the varied per plan dimensions. A dark bronze reveal reglet with a three-eighths-inch gap separates the wood finish from the painted gypsum wallboard surfaces below. The painted gypsum wallboard clads both sides of the framing assembly, with clearances and dimensions varying per the architectural plan.
PL-80 WOOD FINISH. REFER TO ELEVATIONS SHIM AS REQUIRED VARIES PER PLAN FRY REGLET DRMZ-625-25 REVEAL, DARK BRONZE FINISH 3/8" 3/4" GWB, PTD NESTED STUD AT HEAD CONDITION VARIES PER A1 PLAN
