This built-in millwork assembly features a stainless steel countertop over a three-quarter-inch plywood substrate with melamine interior finish and plastic laminate cabinet doors. An integral stainless steel sink is paired with an undermount twelve-inch diameter continuous eighteen gauge brushed stainless steel trash ring set in continuous sealant with fully welded and finished joints. The countertop is supported by steel beams secured to concealed steel posts anchored to the floor at the end walls, with all exposed plywood surfaces painted black. The cabinet includes a three-inch kick attached to the bottom of the door and a towel receptacle extending down to the finish floor.

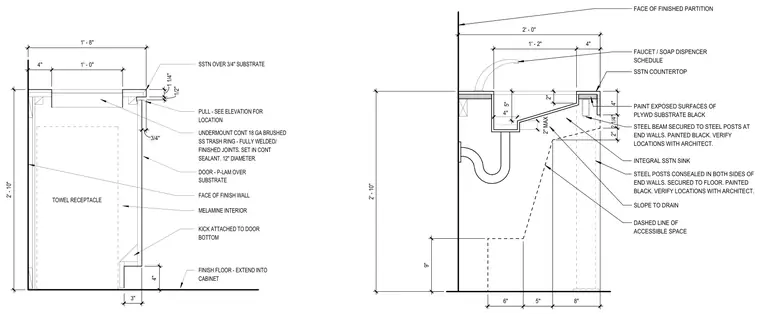

S S T N O V E R 3 / 4 " S U B S T R A T E F I N I S H F L O O R - E X T E N D I N T O C A B I N E T D O O R - P - L A M O V E R S U B S T R A T E F A C E O F F I N I S H W A L L M E L A M I N E I N T E R I O R 2 ' - 1 0 " T O W E L R E C E P T A C L E 3 " K I C K A T T A C H E D T O D O O R B O T T O M P U L L - S E E E L E V A T I O N F O R L O C A T I O N U N D E R M O U N T C O N T 1 8 G A B R U S H E D S S T R A S H R I N G - F U L L Y W E L D E D / F I N I S H E D J O I N T S . S E T I N C O N T S E A L A N T . 1 2 " D I A M E T E R . 4 " 1 / 2 "1 1 / 4 " 1 ' - 8 " 1 ' - 0 " 4 " 3 / 4 " SSTN COUNTERTOP INTEGRAL SSTN SINK FACE OF FINISHED PARTITION DASHED LINE OF ACCESSIBLE SPACE STEEL BEAM SECURED TO STEEL POSTS AT END WALLS. PAINTED BLACK. VERIFY LOCATIONS WITH ARCHITECT. 2 " 2 1 / 4 " 4 " 2 ' - 0 " 6 " 5 " 8 " 9 " 1 ' - 2 " 4 " PAINT EXPOSED SURFACES OF PLYWD SUBSTRATE BLACK 5 " 2 " 2 ' - 1 0 " FAUCET / SOAP DISPENCER SCHEDULE STEEL POSTS CONSEALED IN BOTH SIDES OF END WALLS. SECURED TO FLOOR. PAINTED BLACK. VERIFY LOCATIONS WITH ARCHITECT. 4 " SLOPE TO DRAIN 2 " M A X
