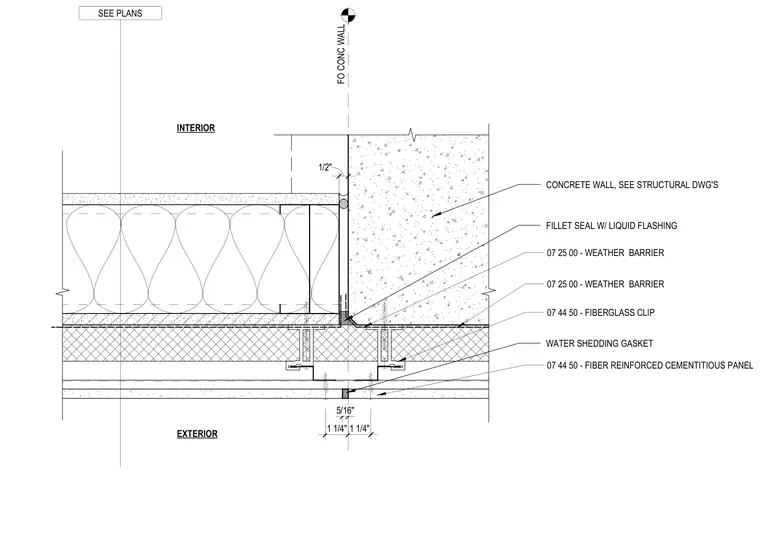

Fiber reinforced cementitious panels are mounted on fiberglass clips over a weather barrier applied to the exterior face of the concrete wall. A water shedding gasket and a fillet seal with liquid flashing are incorporated into the joint at the concrete wall intersection. The interior side features an insulated wall framing assembly coordinated per structural drawings.
SEE PLANS INTERIOR EXTERIOR FO CONC WALL 1/2" 07 25 00 - WEATHER BARRIER CONCRETE WALL, SEE STRUCTURAL DWG'S 07 25 00 - WEATHER BARRIER 07 44 50 - FIBERGLASS CLIP 07 44 50 - FIBER REINFORCED CEMENTITIOUS PANEL FILLET SEAL W/ LIQUID FLASHING 5/16" 1 1/4" 1 1/4" WATER SHEDDING GASKET
