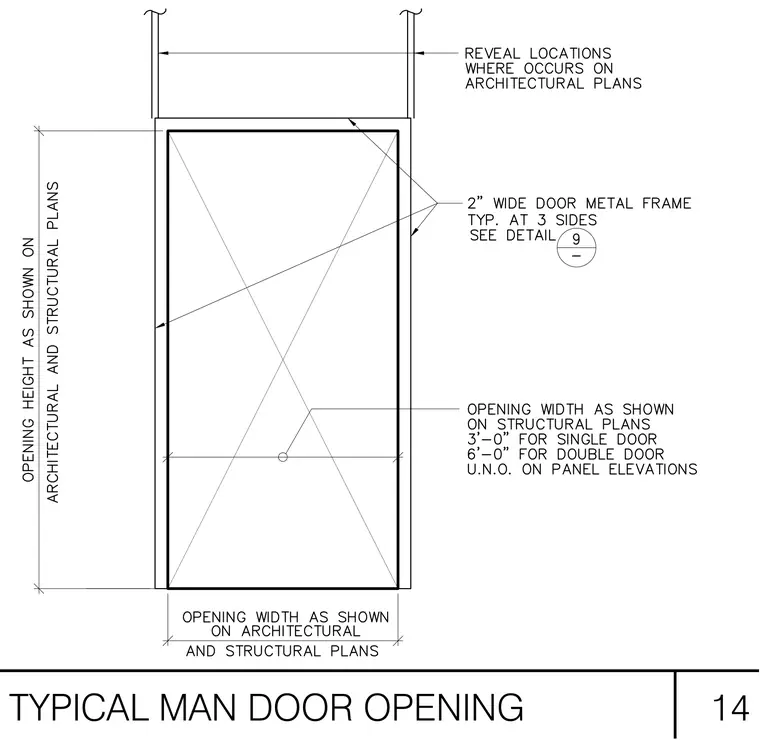

This elevation detail shows a standard man door opening with a two-inch wide metal frame typically placed at three sides. The opening width measures three feet zero inches for a single door and six feet zero inches for a double door unless noted otherwise on panel elevations. Reveal locations are coordinated per architectural plans, and overall dimensions align with architectural and structural layouts.
