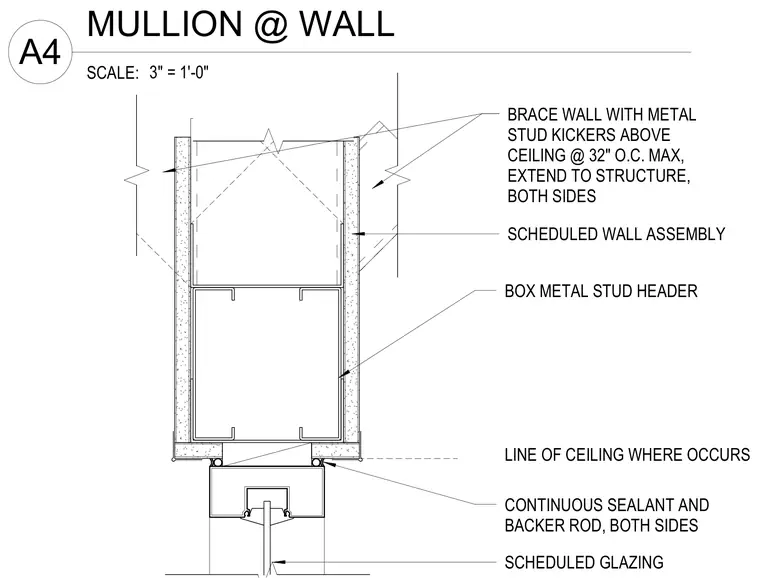

A storefront head assembly meets a scheduled wall assembly finished with continuous sealant and backer rod on both sides of the glazing joint. A box metal stud header supports the wall above, while metal stud kickers brace the wall above the ceiling at a maximum spacing of thirty-two inches on center, extending to the structure on both sides. Scheduled glazing is held below the header with appropriate alignment to the line of the ceiling.
SCHEDULED GLAZING CONTINUOUS SEALANT AND BACKER ROD, BOTH SIDES BOX METAL STUD HEADER SCHEDULED WALL ASSEMBLY BRACE WALL WITH METAL STUD KICKERS ABOVE CEILING @ 32" O.C. MAX, EXTEND TO STRUCTURE, BOTH SIDES LINE OF CEILING WHERE OCCURS SCALE: 3" = 1'-0" A4 MULLION @ WALL
