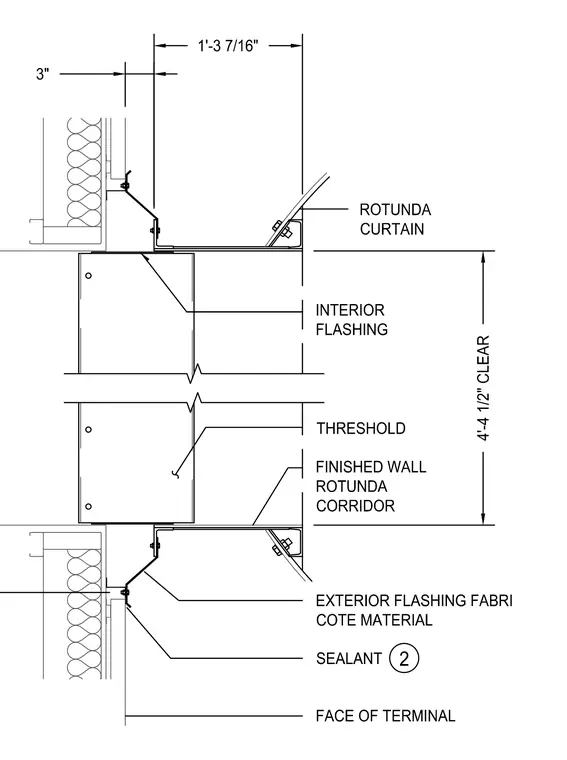

An exterior flashing Fabri-Cote material ties into the finished wall of the rotunda corridor adjacent to a curtain wall transition. Interior flashing and a threshold span the opening with a four-foot four-and-a-half-inch clear dimension. Sealant is applied at the face of the terminal wall condition.
4'-4 1/2" CLEAR 3" 1'-3 7/16" EXTERIOR FLASHING FABRI COTE MATERIAL SEALANT FACE OF TERMINAL FINISHED WALL ROTUNDA CORRIDOR THRESHOLD INTERIOR FLASHING ROTUNDA CURTAIN 2
