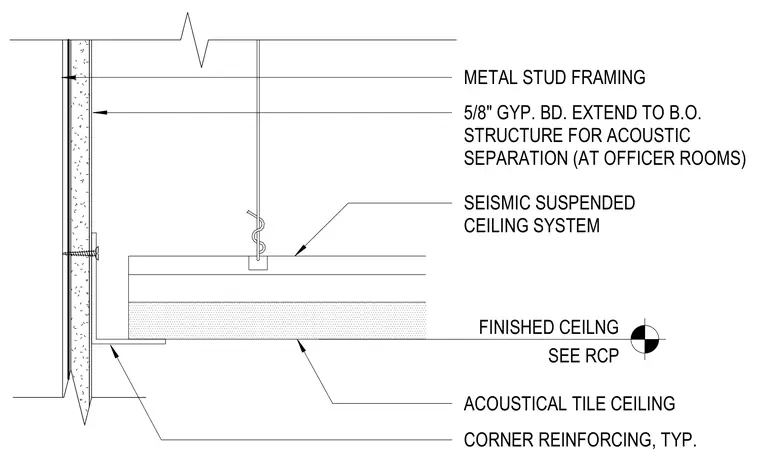

Metal stud framing is faced with 5/8 inch gypsum board extending up to the bottom of the structure to provide acoustic separation at officer rooms. A seismic suspended ceiling system intersects the partition, featuring an acoustical tile ceiling and typical corner reinforcing. The finished ceiling height is coordinated per the reflected ceiling plan.
FINISHED CEILNG SEE RCP 5/8" GYP. BD. EXTEND TO B.O. STRUCTURE FOR ACOUSTIC SEPARATION (AT OFFICER ROOMS) METAL STUD FRAMING SEISMIC SUSPENDED CEILING SYSTEM ACOUSTICAL TILE CEILING CORNER REINFORCING, TYP.
