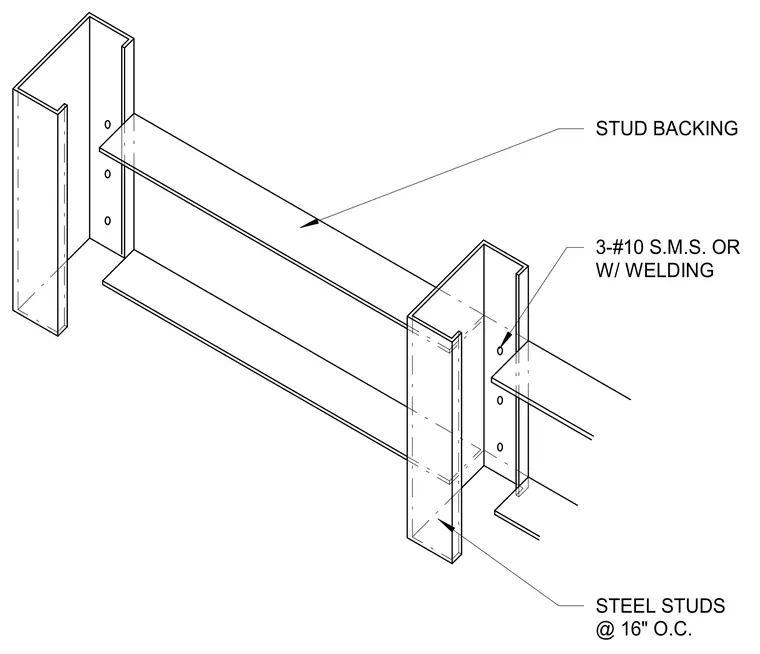

This isometric detail shows a stud backing assembly connected between vertical cold-formed steel studs spaced at sixteen inches on center. The stud backing member ties into the web and flange of the vertical studs using three number-ten sheet metal screws or field welding per connection.
STUD BACKING STEEL STUDS @ 16" O.C. 3-#10 S.M.S. OR W/ WELDING
