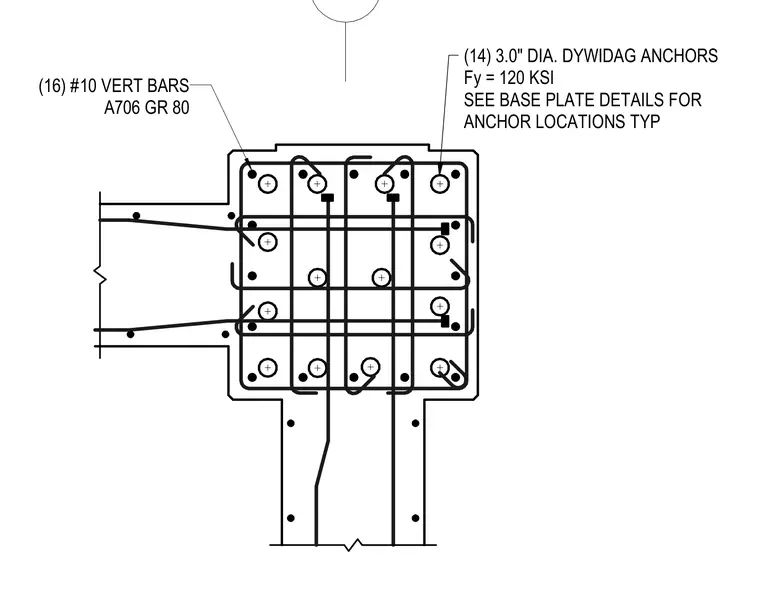

A reinforced concrete pier connects to intersecting walls and incorporates fourteen three-inch diameter Dywidag anchors with a yield strength of 120 ksi. Sixteen number 10 vertical reinforcing bars of ASTM A706 Grade 80 steel run vertically through the assembly. Additional horizontal ties and hooked bar configurations are detailed within the column core. Anchor locations are coordinated with base plate details.
(16) #10 VERT BARS A706 GR 80 (14) 3.0" DIA. DYWIDAG ANCHORS Fy = 120 KSI SEE BASE PLATE DETAILS FOR ANCHOR LOCATIONS TYP
