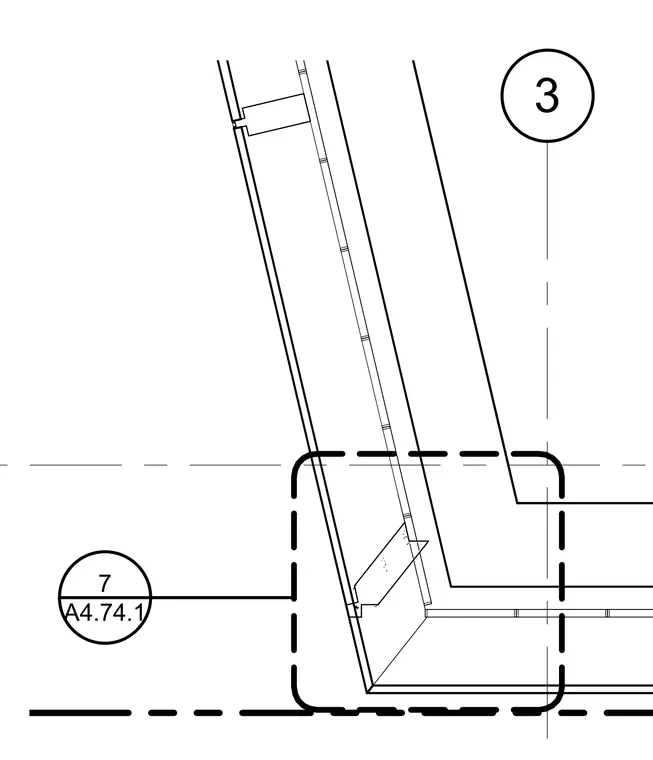

Sloped architectural wall panels intersect at a base junction featuring continuous alignment and support framing. A bracket or anchor plate secures the lower panel assembly. Panel joints maintain tight tolerances along the sloped plane.
