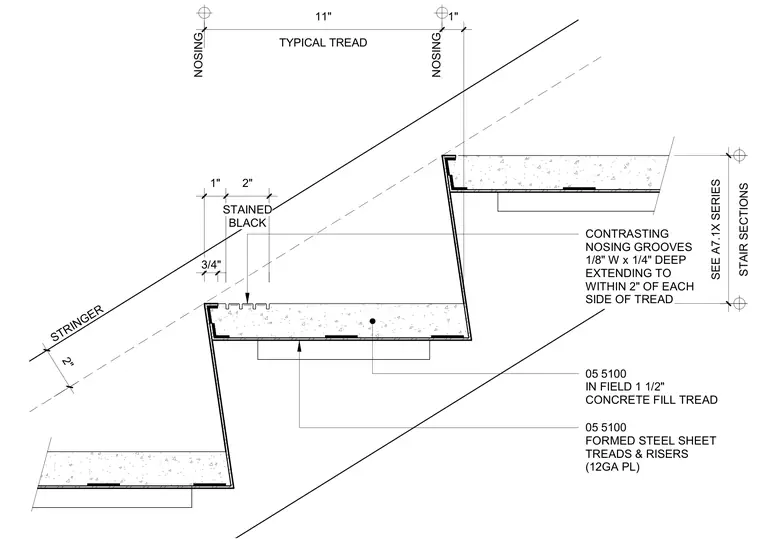

A formed steel sheet tread and riser fabricated from twelve-gauge plate receives one and one-half inches of concrete fill in the field. The eleven-inch tread features contrasting nosing grooves measuring one-eighth inch wide by one-quarter inch deep, extending to within two inches of each side of the tread and stained black. The stair assembly connects to a structural steel stringer.
NOSING CONTRASTING NOSING GROOVES 1/8" W x 1/4" DEEP EXTENDING TO WITHIN 2" OF EACH SIDE OF TREAD 2" 3/4" 1" 2" STAINED BLACK TYPICAL TREAD 11" 1" NOSING STAIR SECTIONS SEE A7.1X SERIES STRINGER 05 5100 IN FIELD 1 1/2" CONCRETE FILL TREAD 05 5100 FORMED STEEL SHEET TREADS & RISERS (12GA PL)
