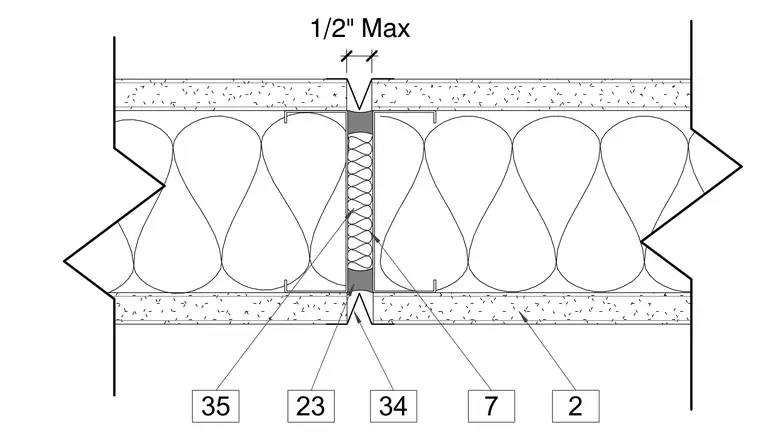

This wall control joint assembly maintains a maximum one-half inch joint width between adjacent gypsum board wall surfaces over steel framing. Flexible sealant fills the exterior reveals on both faces of the partition, backed by insulation within the cavity.
