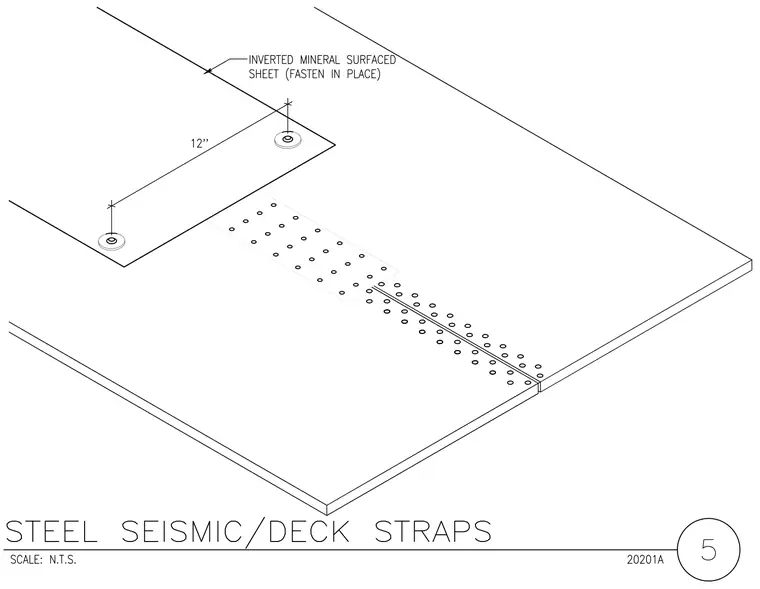

Steel seismic deck straps bridge the gap between adjacent metal deck or floor panels to transfer lateral loads. The assembly features a structural steel strap secured with multiple mechanical fasteners spaced symmetrically across the deck joint. An inverted mineral surfaced sheet is fastened in place over the strap area with a twelve inch dimension indicating fastener spacing. The configuration maintains diaphragm continuity across building expansion or seismic joints.
