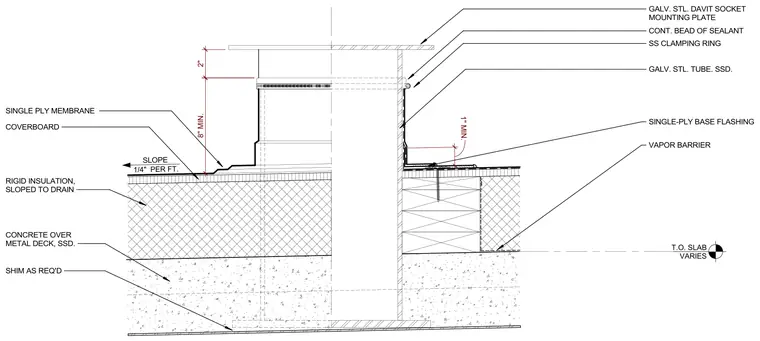

A galvanized steel davit socket mounting plate and tube penetrate the roof assembly, supported by shims as required over a concrete fill on metal deck. The roof buildup consists of a vapor barrier, two inches of rigid insulation sloped to drain at one-quarter inch per foot, a coverboard, and a single-ply membrane. Single-ply base flashing extends up the galvanized steel tube with a minimum eight-inch vertical rise and a one-inch minimum toe. A continuous bead of sealant and a stainless steel clamping ring secure the flashing to the tube.
T.O. SLAB VARIES SINGLE PLY MEMBRANE COVERBOARD CONCRETE OVER METAL DECK, SSD. SLOPE 1/4" PER FT. 2" RIGID INSULATION, SLOPED TO DRAIN SS CLAMPING RING CONT. BEAD OF SEALANT GALV. STL. DAVIT SOCKET MOUNTING PLATE GALV. STL. TUBE. SSD. SHIM AS REQ'D SINGLE-PLY BASE FLASHING 8" MIN. 1" MIN. VAPOR BARRIER
