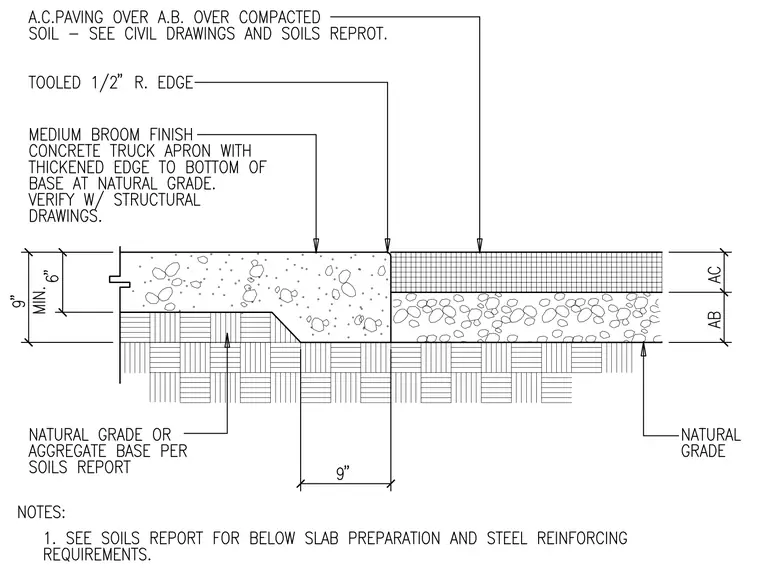

This assembly features a concrete truck apron with a thickened edge extending to the bottom of the aggregate base at natural grade. The concrete edge is finished with a tooled one-half inch radius. Adjacent to the concrete is asphaltic concrete paving over aggregate base over compacted soil. The concrete slab has a minimum thickness of six inches, with a nine-inch total depth at the thickened edge. All subgrade preparation and steel reinforcement requirements are to be verified per the project soils report and structural drawings.
